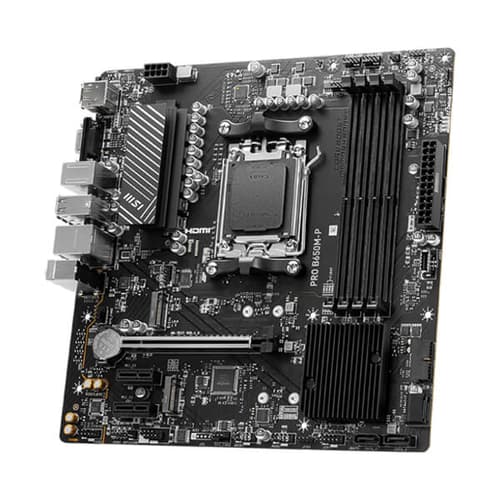

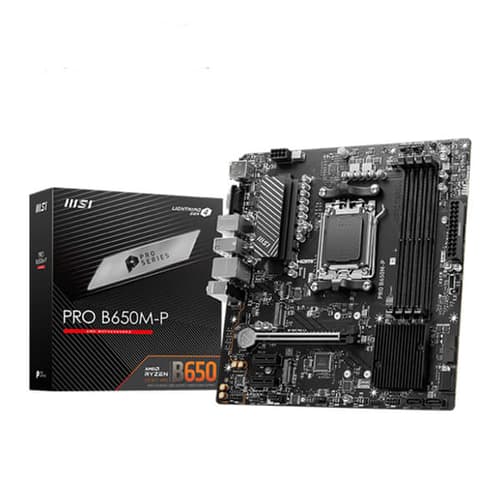

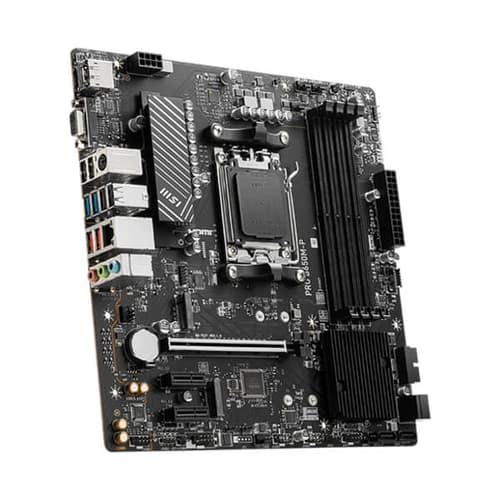

MSI PRO B650M-P DDR5 Micro-ATX AM5 Motherboard
Product Description :
The MSI PRO B650M-P is a Micro-ATX motherboard built on the AMD B650 chipset for Socket AM5. It supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors and has four DDR5 memory slots supporting up to 256GB in dual channel, with speeds up to 7200+ MHz (OC) and MSI Memory Boost.
Expansion includes one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots. Storage is provided by two M.2 Gen4 x4 slots and four SATA 6Gb/s ports. For networking it has a Realtek 8125BG 2.5G LAN controller; there is no built-in Wi-Fi. USB connectivity includes three USB 3.2 Gen 2 10Gbps ports (two Type-A and one Type-C), four USB 3.2 Gen 1 5Gbps ports and eight USB 2.0 ports.
HDMI 2.1, DisplayPort 1.4 and VGA outputs are available with processors that have integrated graphics. Audio is 7.1-channel HD audio with Audio Boost using the Realtek ALC897 codec. Other features include Core Boost digital power design, Frozr AI Cooling, EZ Debug LED and a Flash BIOS button.
| Socket | AM5 |
| Chipset | B650 |
| Memory Type | DDR5 |
Warranty is handled through the brand's authorised service centre. Ask us for the exact terms on this model before you buy.
