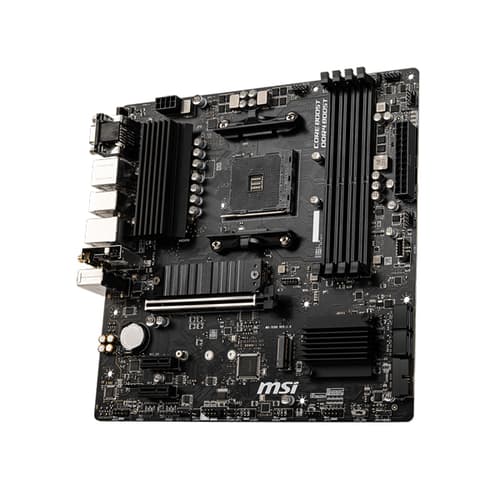

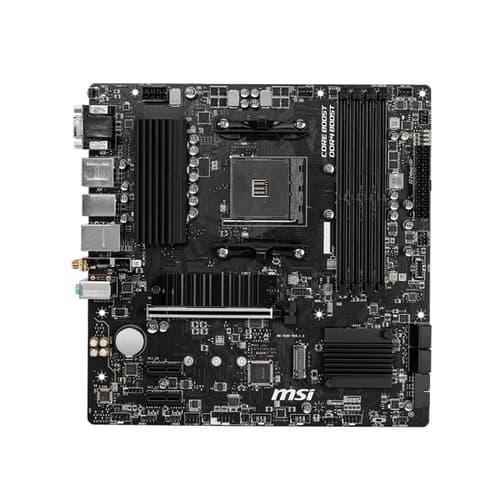

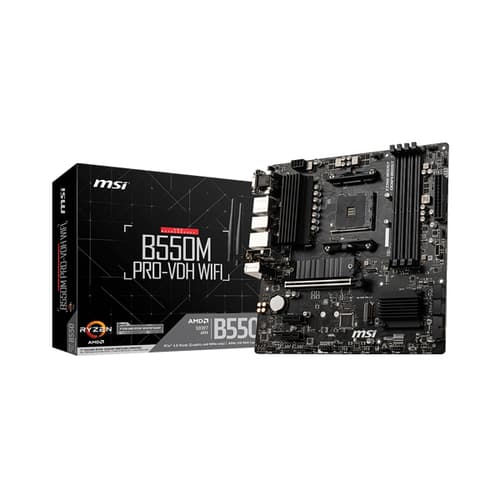

MSI B550M PRO-VDH WiFi DDR4 Micro-ATX AM4 Motherboard
Short Description
The MSI B550M PRO-VDH WIFI is a Micro-ATX motherboard for the AMD AM4 socket, built on the AMD B550 chipset. It supports AMD Ryzen 5000 and 3000 Series desktop processors and Ryzen 4000 G-Series processors, with four DDR4 memory slots supporting up to 128GB in dual channel and speeds up to 4400 MHz (OC).
For expansion it has one PCIe 4.0/3.0 x16 slot with PCI-E Steel Armor, two PCIe 3.0 x1 slots, one M.2 Gen4 x4 slot, one M.2 Gen3 x4 slot and four SATA 6Gb/s ports. Connectivity includes Realtek RTL8111HN Gigabit LAN, Intel Wi-Fi AC with Bluetooth 4.2, seven USB 3.2 Gen 1 5Gbps ports (including one Type-C header) and six USB 2.0 ports. HDMI, DisplayPort and VGA outputs are available with processors that have integrated graphics. Other features include M.2 Shield Frozr, a 2oz thickened copper PCB, 7.1-channel HD audio with Audio Boost, and a Flash BIOS button for updating the BIOS without a CPU, memory or graphics card installed.
| Socket | AM4 |
| Chipset | B550 |
| Memory Type | DDR4 |
Warranty is handled through the brand's authorised service centre. Ask us for the exact terms on this model before you buy.
